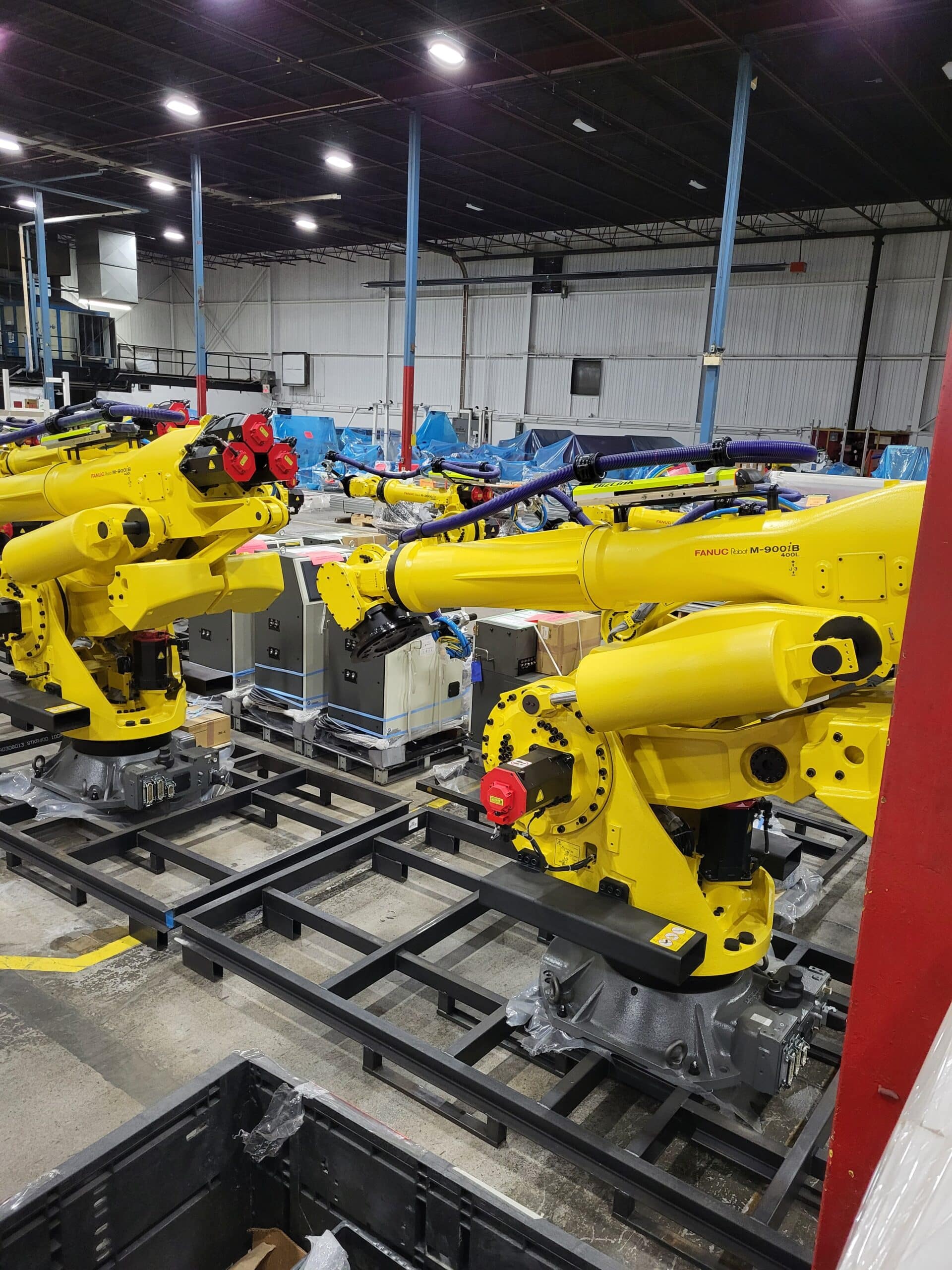

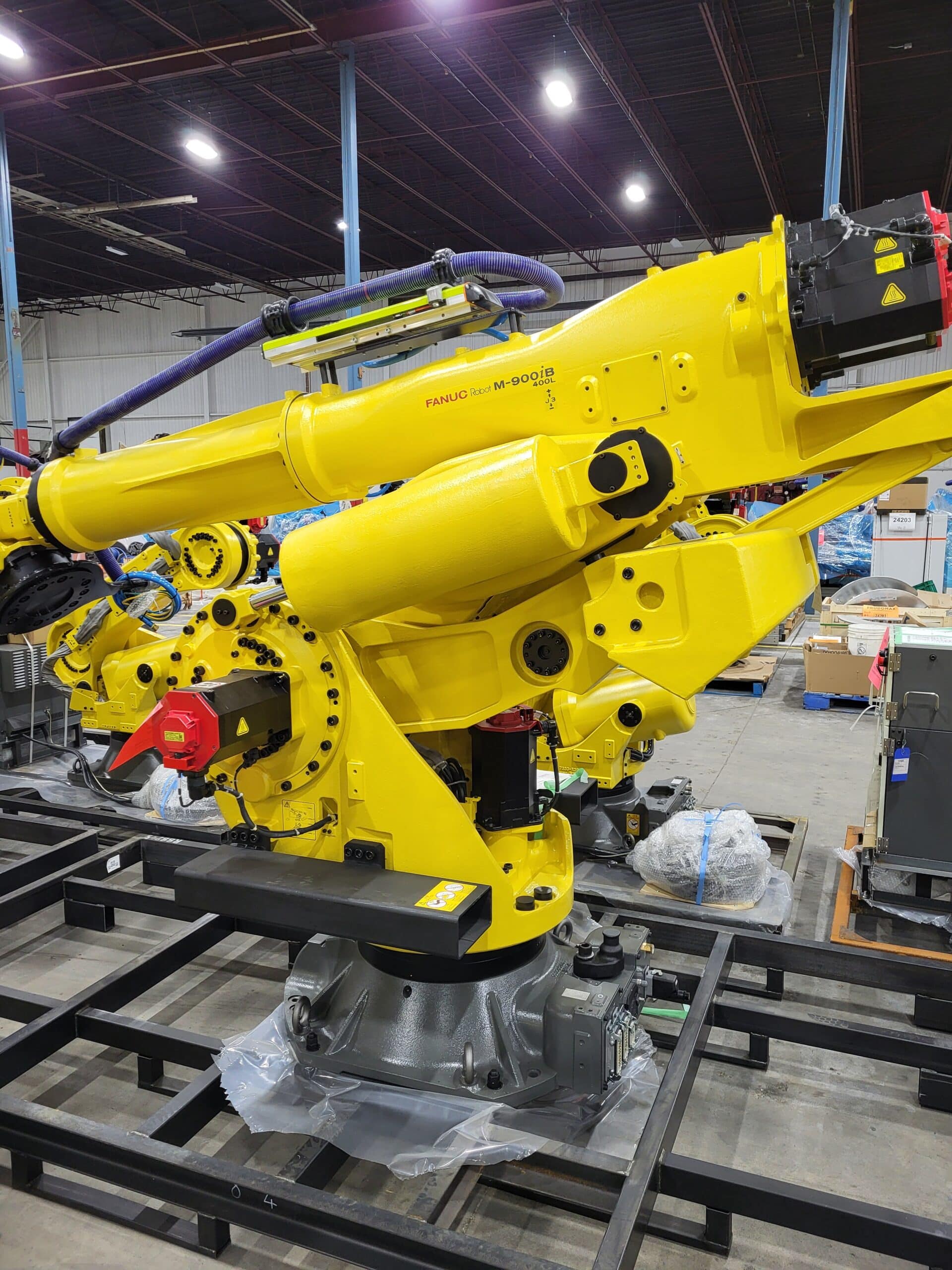

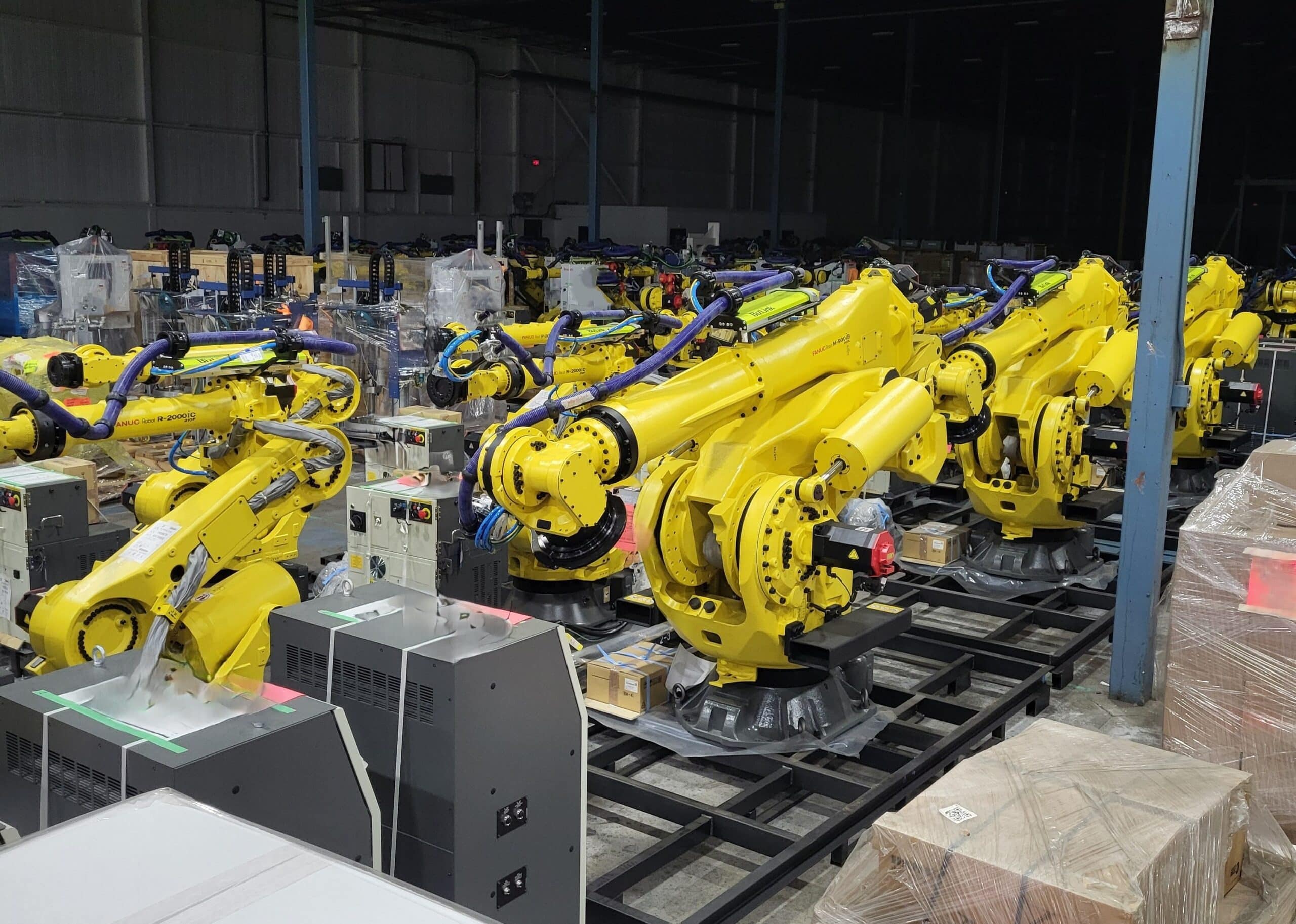

The FANUC M-900iB/400L is an intelligent heavy payload robot from the M-900iB series. This industrial robot is a long arm model designed for automation in manufacturing. As a 6-axis robot (six-axis) , it combines a massive 400 kg payload with an extensive 3704mm reach. This robotic arm is ideal for the transfer of large parts and other heavy material handling tasks. It is a precision robot driven by an electric servo drive by AC servo motor and pairs with the advanced R-30iB controller. The robot is floor mount only and built for severe environments, with an IP54-rated body and an IP67-rated wrist. It also supports the latest intelligent features, including iRVision.
Highlights:
• Brand: Fanuc
• Payload Capacity: 400 kg
• Horizontal Reach: 3704 mm
• Controller Type: R30iB
Or call us at
(905) 565-1995
Overview
- Model: M-900iB/400L
- Type: Long arm
- Controlled Axes: 6
- Repeatability: ±0.1 mm
- Mechanical Weight: 3150 kg (Without controller)
- Installation: Floor
- Protection: Body: IP54 , Wrist: IP67-equivalent
